Model NO.: 3MX8M
Cutting Gas: Oxygen + Acetylene or Propane
CNC System: Beijing Start CNC
Motor and Driver: Stepper&Nbsp;Motor and Driver
Software: Fastcam Software
Moving Precision: 0.01mm Per Step
Drive Mode: Linear Guide and Rack Gear
Cutter Torch Cooling Method: Air Cooling or Water Cooling
Current: 30-400A Plasma Cutter Source
Lead Time: 7 Days
Nest Software: Fastcam
1.Allwelded structure, Y,X axis with rack and linear guide drive,Z axis with electric automatic lifting,to assure cutting speed and quality.
2. Machine with lubrication system, auto fume extraction system and dust proof. 3.The set-up is very simple, all kinds of CAD graphics can be read directly by our system trough U-disk.The software can be edict graphics automatically.
4.Collocated Udisk interface and cutting code auto converting software for CAD drawing ,CAD drawing can be input directly into the cutter through U-disk.
5.Tips for each operation is displayed at the screen at any moment ,so operators can use our system without being trained or reading the instructions.
6.Collocated indicator lights for various hitches.Hitch diagnosing is clear just at a glance and the maintenance is convenient and quick.
7.There are necessary keys for the movement control in the torch carriage ,so the operator can easily move the torch to the right spot.
8.With break point or interruption of power ,memory function.

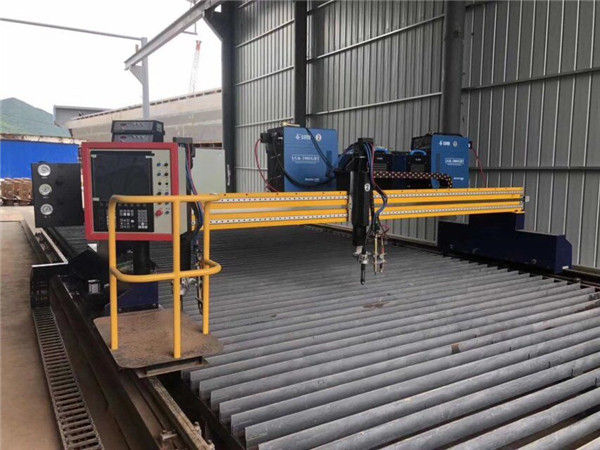

|ຊື່||Gantry CNC Cutting Machine|
|Cutting types||Oxy-fuel||Plasma||Oxy-fuel and Plasma|
|ໂຄງສ້າງ||Gantry, dual drive|
|Track span & Guide rail||3000×6000mm|
|Effective cutting size||2400×4500mm|
|ການສົ່ງຕໍ່||Longitudinal and Transversal main trolleys: rack & pinion Transversal slave trolley: steel belt|
|Tube Transmission||Transversal: Industrial plastic drag chain;|
Longitudinal: Hanging pulleys or earthing drag chain
|ຄວາມຫນາຕັດ||6-150 mm mild steel|
|2-40mm mild steel, SS, Brass, Aluminum, etc.(Depends on plasma capacity)||Oxy-fuel 6-150 mm;|
Plasma: depends on plasma capacity;
|Torch No.||1 (2 is option)||1 (2 is option)||2|
|Torch height control(THC)||Motorized torch control (CAP auto THC is option)||Arc voltage auto THC|
|Arc voltage auto THC for plasma cutting|
Motorized torch control for oxy-fuel cutting
