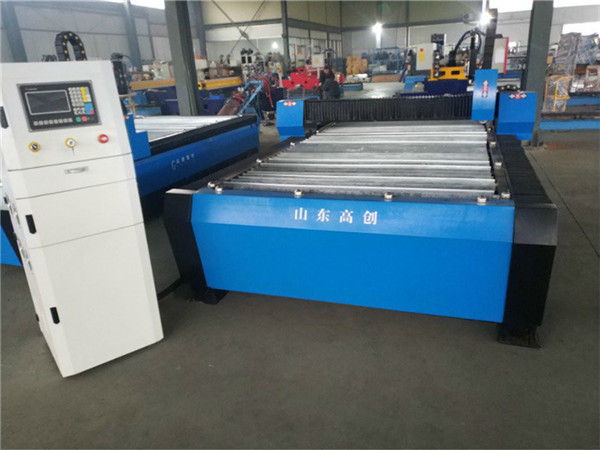

Jinan CE Profession 1325 ເຄື່ອງຕັດ Plasma CNC ຂະ ໜາດ ນ້ອຍ
ຂໍ້ມູນພື້ນຖານ


ການປັບແຕ່ງ: ຖືກປັບແຕ່ງ
ເງື່ອນໄຂ: ໃໝ່
Color: Customized
Working Area: 1300*2500mm
Idling Speed: 15.000mm/Min
Working Speed: 10.000mm/Min
Precision: 0.07mm
Positioning Accuracy: 0.02mm
Machine Structure: Channel Steel Lathe Bed,Serrated Table

ລາຍລະອຽດຂອງສິນຄ້າ


Product Overview
Plasma series is mainly applied to non-insulating material cutting,According to material thickness,power source of different current are correspondent choices to best fit precision request.

ຄຸນ​ລັກ​ສະ​ນະ
1.Steel structure lathe bed is capable of loading heavy metal sheet of large size.
2.Indline design under table surface makes finshed parts and scrap slide down to both side along,convenient and safe for operator.
3.DSP-hand-held control system dedicated for plasma machine,supports file reading from U disk or downloading from computer,providing high independence and great convenience duringoperation.
4.Racks and gears as transmission raise moving speed so that large area cutting can be done in short time.
5.High sensitivity THC(Torch Height Controller)is optional for auto adjustment to cutting distance and cutting precison.
6. Plasma cutting machine Y axis adopts double moters with double drivers. XYZ axis round raill, moving smoothly, with high accuracy. (Option: Square rail)
7. Excellent cutting 3D illuminated letters for advertising and channel letters on metal surface board.
8. Arc voltage height controller
9. Small cutting gap, no residua.
10. Plasma Cutter working together with other advertising machines, such as CNC Router etc, improving working efficiency
11. Superior plasma power, Taiwan linesr rail, ensure vertical section, more percision.
12. US. Haibao power and domestic Huanyuan power
13. Drive system uses a system of Beijing Stuart

Technical Specification


ຕົວແບບQL-1325 ເຄື່ອງຕັດ plasma
ຂະ ໜາດ ເຮັດວຽກ1300x2500mm
Repeat positioning accuracy± 0.05mm
ຄວາມໄວໃນການເດີນທາງ0-24000rpm/min
ຄວາມໄວຕັດ100-8000mm/min
ແຮງດັນໄຟຟ້າທີ່ເຮັດວຽກAC380/50HZ
ຮູບແບບການສົ່ງຕໍ່Gear rack drive
ລະບົບສາຍສົ່ງhigh-precision, zero clearance increased linear guide + rack
Cutting systemBeijing Stuart cutting system (English)
ຄົນຂັບລົດRay plug drives 860
(Sino-us joint venture large drives
ການສະ ໜອງ ພະລັງງານ PlasmaImported US Haibao or Domestic Huayuan
ຄວາມຫນາຕັດ6-25mm
Cutting typePlasma/oxy-acetylene or propane
ແຮງດັນຂາເຂົ້າ3 phase, 220v/380v±10%
Mode of file transferໂຕ້ຕອບ USB
ການສະ ໜອງ ພະລັງງານ65A US Haibao power supply
Guide wayImported square rail
Table-boardSteel blade saw tooth mesa
Straight line positioning precision±0.2mm/10m
Straight line repeat precision±0.3mm/10m
Environmental temperature-5~45°C
ຄວາມຊຸ່ມຊື່ນ<90% No concreting
